Electrical Boards
Leading Exporters, Wholesaler and Trader of Intelligent Switch Board, Main Distribution Board and Meter Board from Ghaziabad.
| Business Type | Exporter, Supplier, Trader |
| Operating Voltage | 230V AC, 50 Hz |
| Control System | Microcontroller / IoT-enabled Smart Control Module |
| Connectivity | Wi-Fi / Bluetooth / Zigbee / GSM |
| Switching Mechanism | Relay-based / Solid State Relay (SSR) |
| Load Capacity | 5A To 32A Per Channel |
| Control Interface | Mobile App / Touch Panel / Voice Control |
| Energy Monitoring | Real-time Voltage, Current, Power Tracking |
| Protection Features | Overload, Short Circuit, Surge, Overheating Protection |
| Installation Type | Wall-mounted Modular Switch Board Design |
| Standards Compliance | Designed As Per IS/IEC Safety Standards |

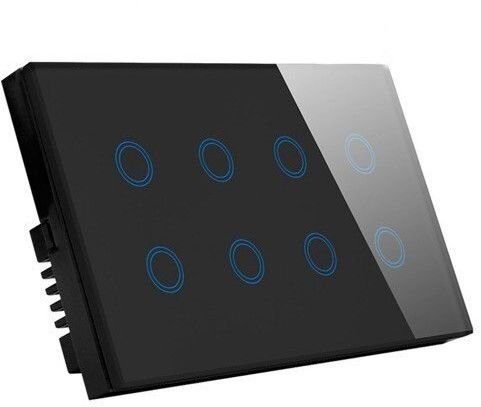

We offer an Intelligent Switch Board designed for efficiency and convenience. Operating at 230V AC, this switch board features a Microcontroller/IoT-enabled Smart Control Module for seamless control. With Wi-Fi/Bluetooth/Zigbee/GSM connectivity options, it ensures easy access. The switching mechanism includes relay-based/SSR for reliable performance, supporting a load capacity of 5A to 32A per channel. Control via mobile app/touch panel/voice control enhances user experience. Real-time voltage monitoring and protection against overload add to its safety features. This wall-mounted modular design complies with IS/IEC safety standards, making it a top choice for exporters, suppliers, and traders.
Read More...
| Business Type | Exporter, Supplier, Trader |
| Rated Voltage | 415V AC, 3 Phase, 4 Wire System |
| Frequency | 50 Hz |
| Current Rating | 100A To 3200A (as Per Load Requirement) |
| Function | Primary Power Distribution From Transformer/utility To Sub-distribution Boards |
| Short Circuit Withstand | 25 KA To 65 KA For 1 Second (design Dependent) |
| Busbar System | Electrolytic Grade Copper / Aluminium With Insulated Support System |
| Incoming Protection | ACB / MCCB / Isolator As Main Incoming Device |
| Outgoing Feeders | MCCB / MCB / Fuse-based Outgoing Circuits |
| Enclosure Protection | IP42 / IP54 / IP65 As Per Indoor/outdoor Application |
| Standards Compliance | Designed As Per IS/IEC 61439 And Relevant Electrical Safety Standards |

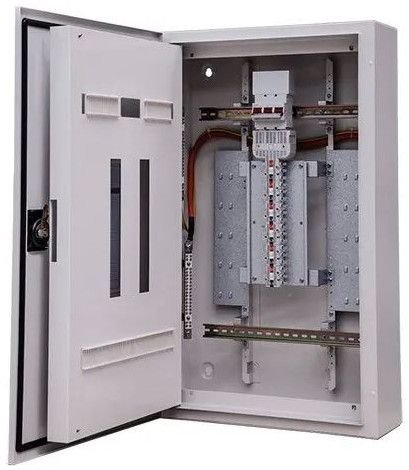

We offer a high-quality Main Distribution Board designed for primary power distribution from transformer/utility to sub-distribution boards. Rated at 415V AC with a frequency of 50 Hz, our boards have a current rating ranging from 100A to 3200A as per load requirements. Featuring a short circuit withstand capacity of 25 KA to 65 KA for 1 second, the board is equipped with electrolytic grade copper/aluminium busbar system and incoming protection options like ACB/MCCB/Isolator. Outgoing feeders include MCCB/MCB/fuse-based circuits, enclosed in IP42/IP54/IP65 protection for indoor/outdoor applications. Compliant with IS/IEC 61439 and relevant electrical safety standards.
Read More...
| Business Type | Exporter, Supplier, Trader |
| Voltage | 230V / 415V AC, 50 Hz (single-phase / Three-phase System) |
| Function | Electrical Energy Measurement And Distribution Monitoring |
| Current Rating | Typically 5A To 100A (as Per Metering Requirement) |
| Meter Type | Analog / Digital / Smart Energy Meters (single Or Three Phase) |
| Enclosure Material | CRCA Steel / Polycarbonate / FRP With Powder-coated Finish |
| Protection Class | IP42 / IP54 / IP65 Depending On Indoor Or Outdoor Installation |
| Wiring System | Pre-wired / Terminal Block-based Internal Wiring System |
| Mounting Type | Wall-mounted / Surface-mounted / Recessed Type |
| Safety Features | Sealed Meter Compartment, Proper Earthing, And Insulated Wiring |
| Standards Compliance | Designed As Per IS/IEC 13779 / IS 16444 And Electrical Safety Standards |

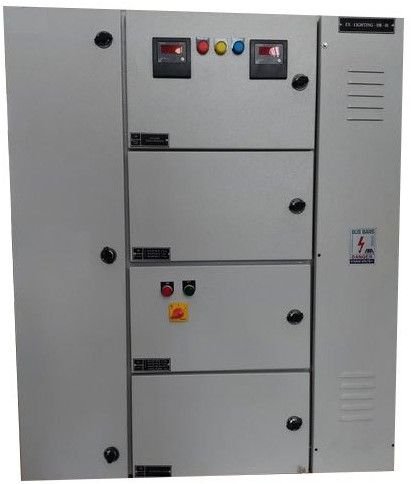

We offer a versatile Meter Board designed for electrical energy measurement and distribution monitoring. Operating at Voltage 230V / 415V AC, this board supports current ratings typically ranging from 5A to 100A, catering to various metering requirements. Choose from Analog, Digital, or Smart Energy Meters in single or three-phase configurations. The sturdy enclosure is made of CRCA Steel, Polycarbonate, or FRP with a powder-coated finish, ensuring durability. With protection classes IP42, IP54, or IP65 for indoor or outdoor installations, safety is paramount. The pre-wired or terminal block-based internal wiring system, along with wall-mounted, surface-mounted, or recessed mounting options, offers flexibility. Compliant with IS/IEC 13779 and IS 16444 standards, this Meter Board is ideal for exporters, suppliers, and traders in the electrical industry.
Read More...
