Electrical Control Panels

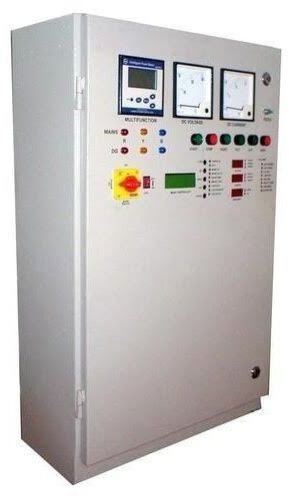

We offer an advanced AMF Panel designed for seamless automatic changeover between mains supply and DG set during power failure. Operating at 415V AC and 50Hz frequency, this panel features a Microprocessor/PLC-based controller for efficient performance. With a changeover time of 5-10 seconds (adjustable), it ensures uninterrupted power supply. Equipped with voltage and frequency sensing for all phases, automatic start/stop signal to the generator set, and protection against over/under voltage, this panel meets IS/IEC 60947 and IS/IEC 61439 standards. LED indicators/digital display provide easy status monitoring. Ideal for exporters, suppliers, and traders seeking reliable power solutions.

We offer high-quality Capacitor Panels designed for power factor improvement and reactive power compensation. Our APFC Capacitor Banks operate at a rated voltage of 415V AC, maintaining power factor typically between 0.95 lag to unity. Featuring automatic switching through APFC relay/controller, step-wise KVAR ratings, and microprocessor-based APFC controller, these panels ensure efficient energy management. Enclosed in floor-mounted/wall-mounted metal enclosures, they comply with IS/IEC 60831 and IS/IEC 61439 standards. Ideal for exporters, suppliers, and traders seeking reliable power solutions.

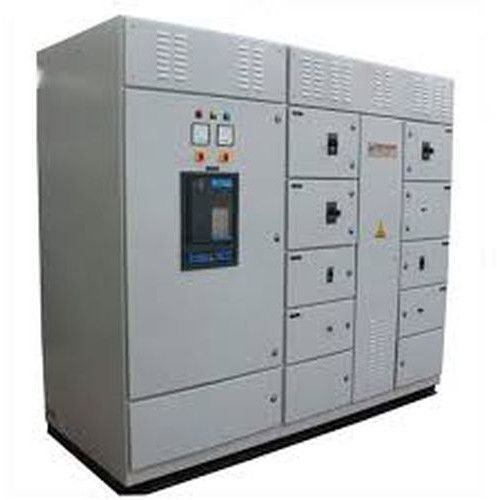

We offer a high-quality Load Sharing Panel designed for efficient power distribution. Operating at 50 Hz frequency and 415V AC, this panel ensures automatic/manual load distribution between multiple power sources like DG sets and mains. Equipped with a Microprocessor/PLC-based Load Sharing Controller, it supports active & reactive power sharing for kW & KVAR balancing. The panel features auto synchronization of generators before load transfer, CT-based current sensing for real-time monitoring, and communication protocols like Modbus/CAN Bus/Ethernet. Compliant with IS/IEC 61439 standards, it provides overload protection and is ideal for exporters, suppliers, and traders in the electrical industry.

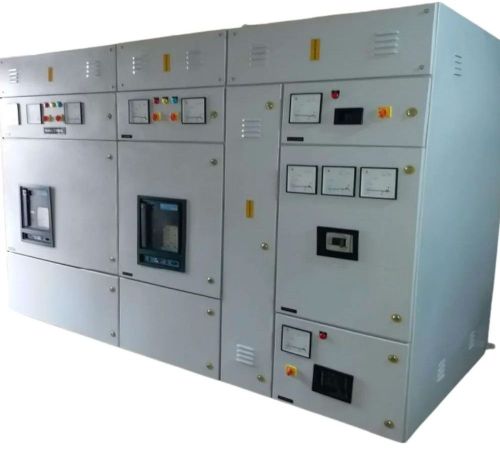

We offer Main LT Panels designed for optimal performance in various applications. Rated Voltage of 415V AC and Frequency of 50Hz ensure reliable power distribution. Current Rating ranges from 63A to 6300A, customizable to meet system requirements. With Short Circuit Withstand of 25 KA to 50 KA for 1 second, safety is prioritized. Choose between Floor Mounted or Wall Mounted Modular Type panels with Enclosure Protection options of IP42, IP54, or IP65 based on the application environment. Busbar Material options include High Conductivity Electrolytic Copper or Aluminium. Insulation Level of 690V with Heat-resistant Supports ensures durability. Cooling System can be Natural Air Ventilation or Forced Cooling with optional fans. Compliant with IS/IEC 61439 Standards, these panels are ideal for Exporters, Suppliers, and Traders.

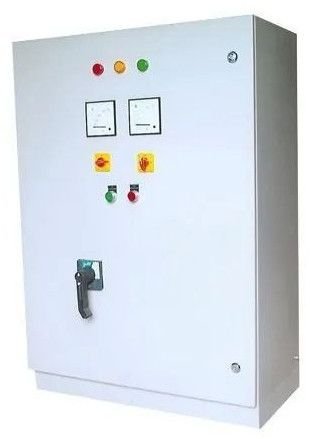

We offer high-quality MCC Panels designed for efficient motor control applications. Our panels operate at a frequency of 50Hz with a rated voltage of 415V AC. The current rating ranges from 100A to 4000A, tailored to meet specific motor load requirements. These floor-mounted panels utilize the Direct-On-Line (DOL) motor control method and feature a short circuit withstand capacity of 25 KA to 65 KA for 1 second. Constructed with electrolytic grade copper/aluminium busbars with insulation coating, they are equipped with MCCBs for protection. Enclosure protection options include IP42, IP54, or IP65 based on installation environment, meeting IS/IEC 61439 and relevant motor control standards.

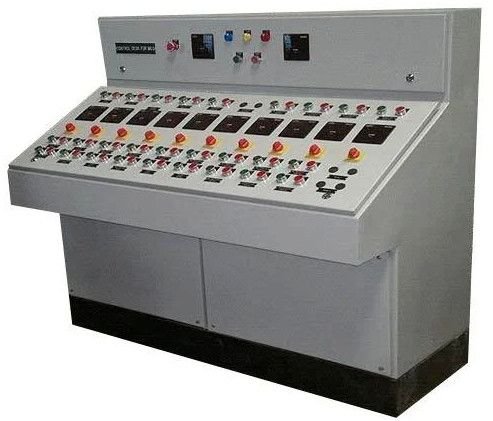

We offer a high-quality Mimic Panel made of mild steel in a sleek grey color, with a power range of 1-3kw. This fully automatic panel, powered by electricity at 220V, is ideal for industrial applications. Originating from India, it comes with a 1-year warranty. As an exporter, supplier, and trader, we ensure top-notch products for your industrial needs.

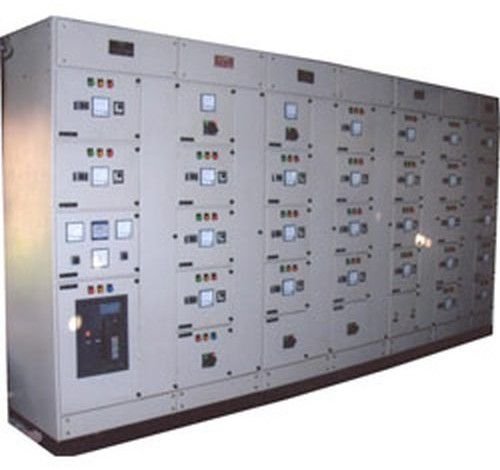

We offer high-quality PCC Panels designed for efficient power distribution. Our panels feature Voltage of 415V AC, Cooling System with Natural Air Cooling/Forced Ventilation, Frequency of 50 Hz, and Current Rating ranging from 100A to 6300A as per load requirements. With Short Circuit Withstand of 25 KA to 65 KA for 1 second, these Floor Mounted panels ensure reliable performance. Busbar Material is Electrolytic Grade Copper/Aluminium with Heat Shrink Insulation, and Protection Class varies from IP42 to IP65 based on installation environment. Choose from Manual/Semi-automatic/PLC-based Automation control systems. Compliant with IS/IEC 61439 and relevant safety standards. Ideal for Exporters, Suppliers, and Traders.

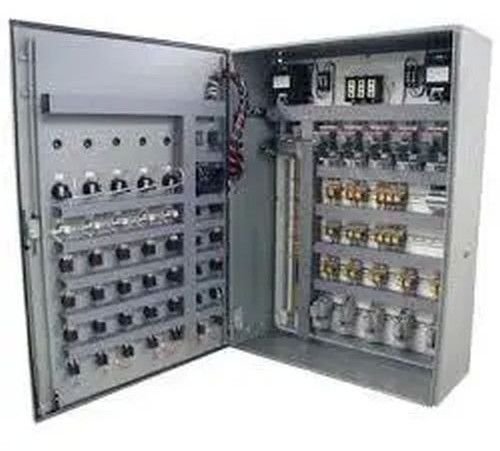

We offer a versatile Relay Panel designed for efficient protection functions with Operating Voltage options of 230V AC / 415V AC. Our panel features Electromechanical / Solid State Relays (SSR) / Numerical Relays for reliable performance. With Control Voltage choices of 24V DC / 110V DC / 230V AC and Input Signals from Analog and Digital Sensors, it ensures seamless operation. The NO/NC Contacts provide tripping capabilities for enhanced safety. This wall-mounted or panel-integrated modular design complies with IP42 / IP54 / IP65 standards, suitable for various environmental conditions. Designed as per IS/IEC 60255 and IS/IEC 61439 standards, our Relay Panel is ideal for exporters, suppliers, and traders.

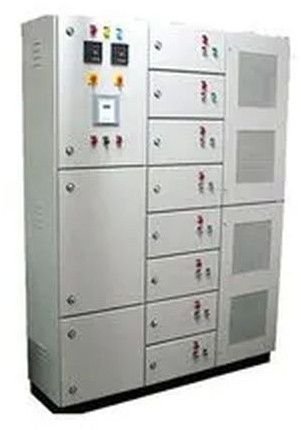

We offer a high-quality Rising Main Panel designed for vertical power distribution in multi-storey buildings. With a frequency of 50Hz and a rated voltage of 415V AC, our panels come in current ratings ranging from 100A to 2500A to meet specific building/load requirements. The incoming source can be from a transformer, main LT panel, or generator supply, while the outgoing feeders consist of floor-wise distribution feeders with MCCB/MCB protection. Our panels feature a high conductivity copper/aluminium insulated busbar system, protection devices like MCCB, and enclosure protection ranging from IP42 to IP65 based on installation type. Compliant with IS/IEC 61439 and other relevant electrical distribution standards, we cater to exporters, suppliers, and traders.
